Comes with:

• Processors - 1 x Intel® Xeon® E-2224 (4-Core, 3.4 GHz, 71W)
• Memory - 16 GB UDIMM DDR4 2666 MT/s (1x 16 GB)
• Network Controller - Embedded 1Gb 2-Port 361i Ethernet Adapter
• Storage Controller - Embedded S100i SW RAID with 4 SATA ports
  Notes: Field upgradeable to SAS/8 ports by selecting HPE Smart Array controller.

• Hard Drive - None ship standard
• Internal Storage - 8 SFF HDD Bays (Hot Plug) 1x M.2 PCIe 3.0 x2 slot
• Optical Drive Bay - Optional Slimline ODD Bay Kit (P06309-B21) for SATA DVD-ROM/DVD-RW optical drive up to 1, Media drive bay for internal RDX or tape/LTO devices up to 1
• Optical Drive - None ship as standard
• PCIe Slots - 4 PCIe 3.0 slots
• Power Supply - (1) 500W HPE Flex Slot Power Supply
  Notes: Add a second 500W Flex Slot Power Supply to get 1 1 power redundancy feature.

• Fans - 1 non-hot plug, non-redundant system fan
• Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download),
  HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)
• Energy Start - N/A
• Form Factor - Tower (4U)

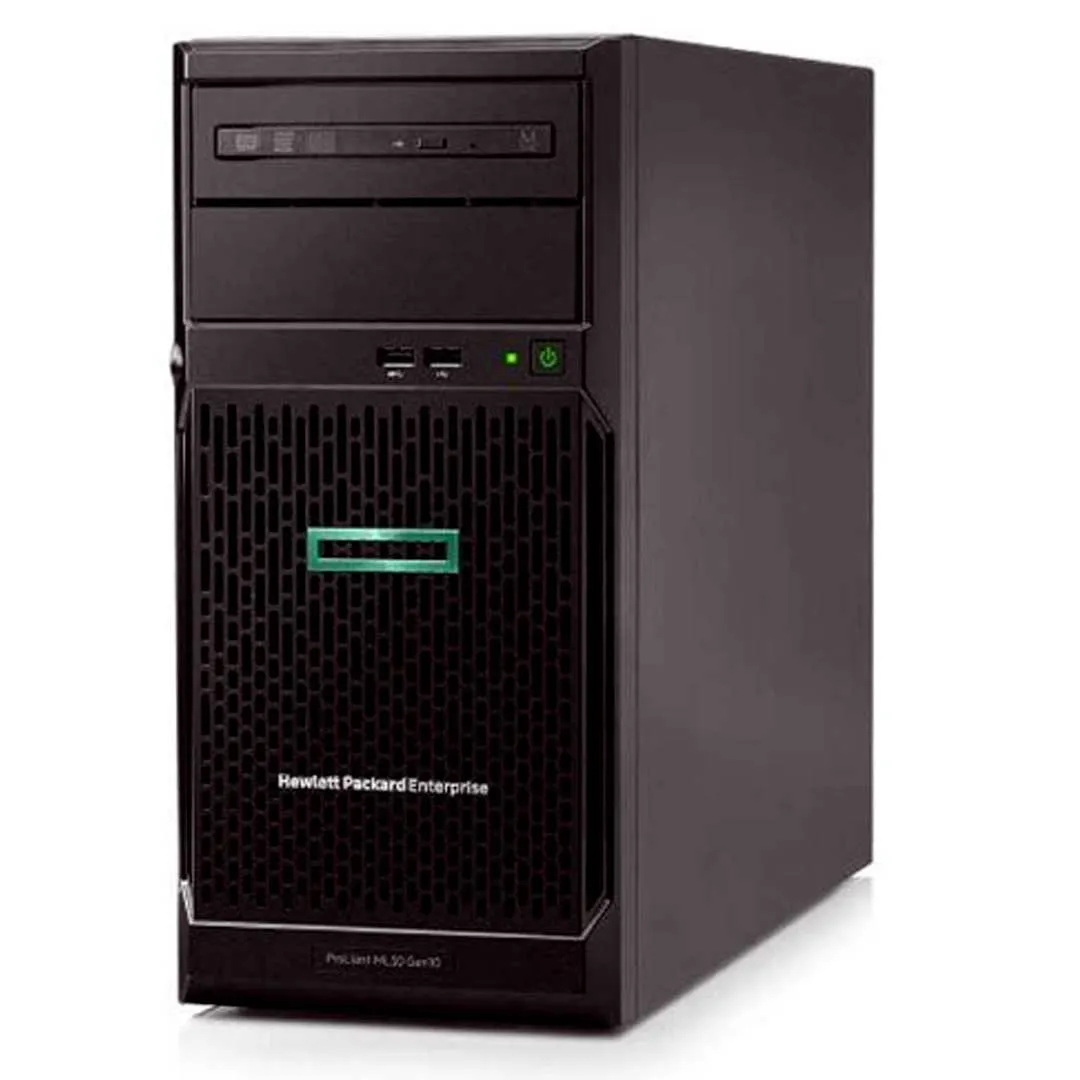

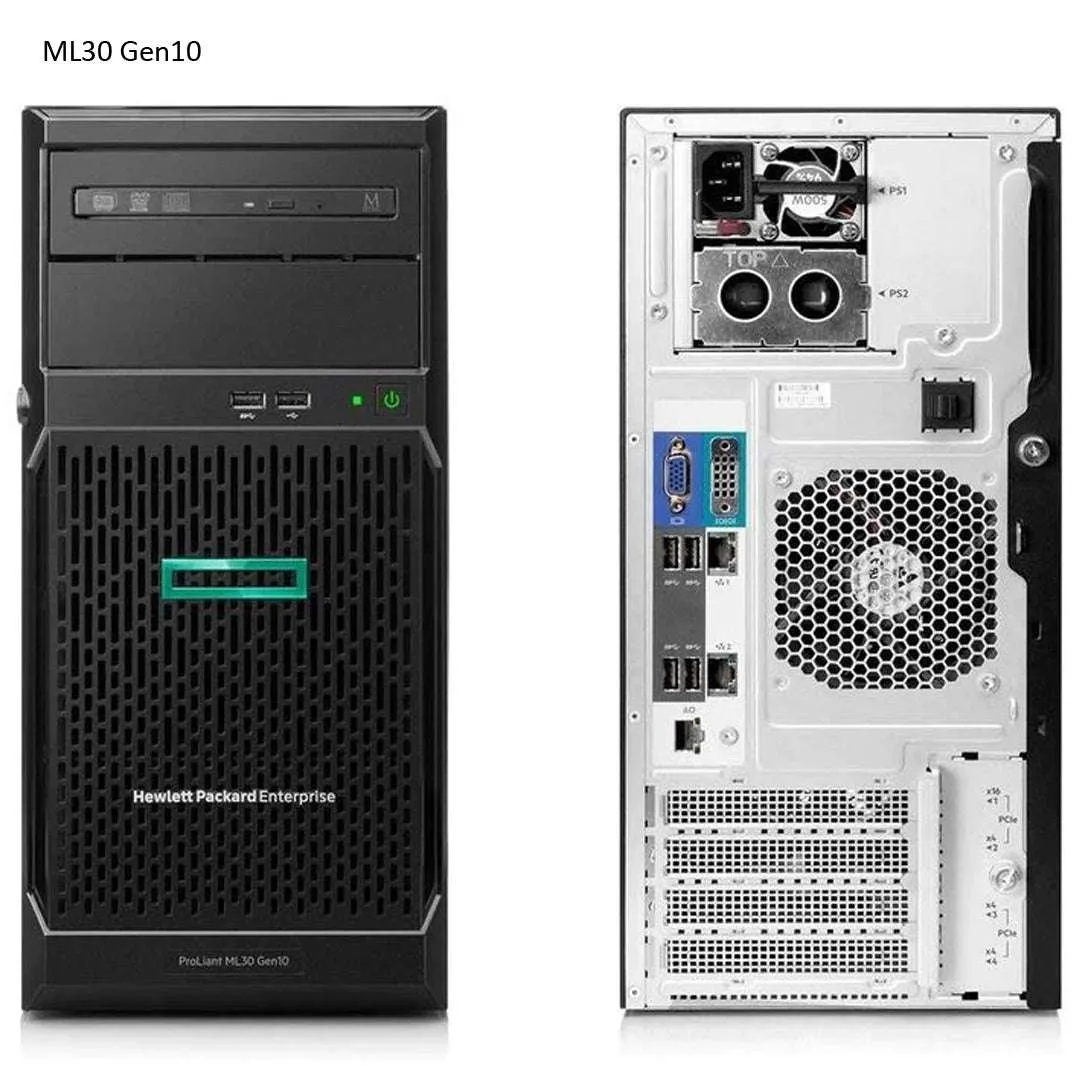

The refurbished HPE ProLiant ML30 Gen10 server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premise and Hybrid Cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost. Just a small change can give you an extra edge.

Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust, making the HPE ProLiant ML30 Gen10 server one of the world's most secure industry-standard servers. Redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability allows you to upgrade with SAS controllers, networking cards, or graphics cards as your business grows. You will be surprised at how much benefit you can get with HPE ProLiant ML30 Gen10 server.

What’s New for ML30 Gen10

• Supports Intel Xeon E-2100/2200 processor series with up to 6 cores and 83W, 8th/9th Core i3 and Pentium G processors.
• HPE 361i 1Gb 2-Port network adapter on models with the new Intel Xeon E-2200, 9th Gen Core i3 and Pentium G processors.
• HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
• 2666 MT/s HPE DDR4 Standard Memory UDIMM offering 8 GB, 16 GB. and a maximum of 64 GB memory capacity.
• Four expansion slots for more flexible usage - two x16 and two x8 connectors.

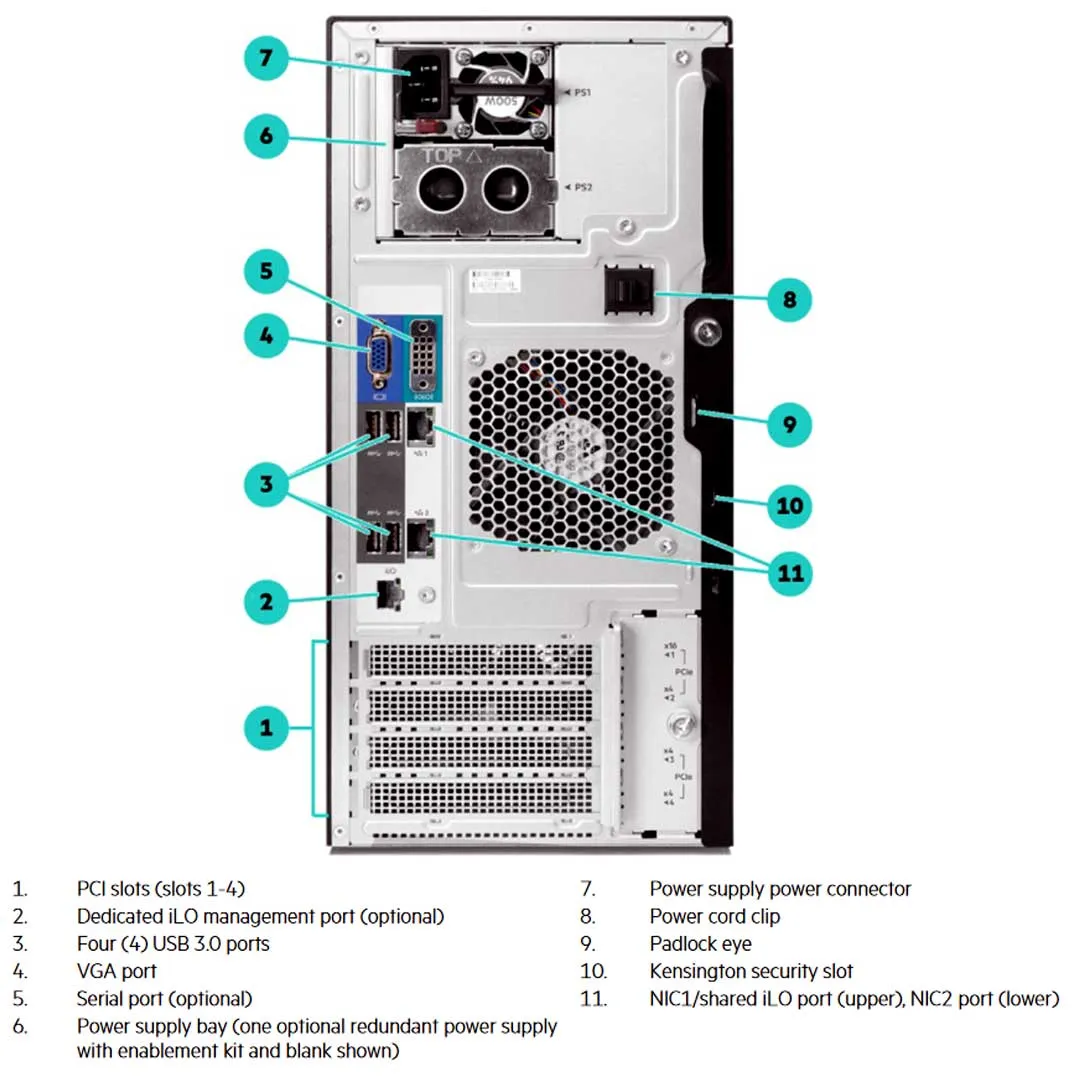

• Dedicated HPE iLO port and serial port option kit.

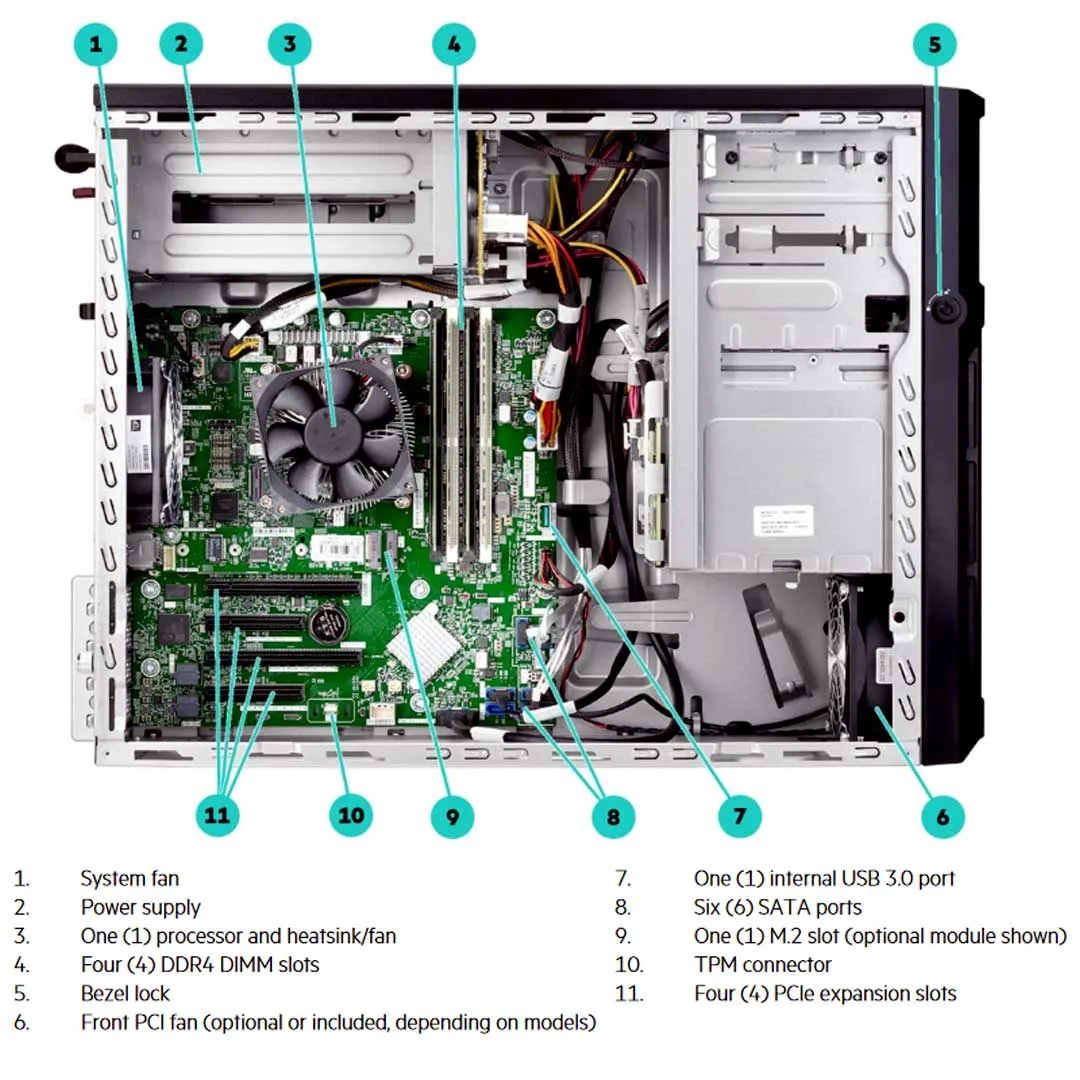

System Board (P19337-001)
Embedded with HPE 361i 1Gb 2-Port Network Adapter and only supports the Intel Xeon E-2200 Family/Intel Core i3-9100/Intel Pentium Gold G5420 processor.

Tower-to-Rack Conversion

The HPE ML30 Tower server can easily be converted into a Rack server by simply adding the HPE ML Gen10 Tower to Rack Conversion Kit (874578-B21). This kit is everything you need to get “Sliding”. This rail kit comes with the rail tray that the server sits on top of and is mounted to from the back. The server tray is that actual piece mounted to the rails that slide out for easy access to the server.

Which Chassis should I choose?
HPE has provided three different CTO models to choose from. Each comes with 4 PCIe 3.0 Slots, the stand Embedded S100i SW RAID with 4 SATA ports (can have support for 6 SATA drives with 2pcs drive enablement kits (812248-B21)), and an embedded HPE Ethernet 1Gb 2-Port 361i Adapter optional 1/10Gb standup card . Only the Hot-Plug Chassis can have the choice of a Smart Array along with or instead of the S100i. If you’re not sure what chassis would work best, contact us today.

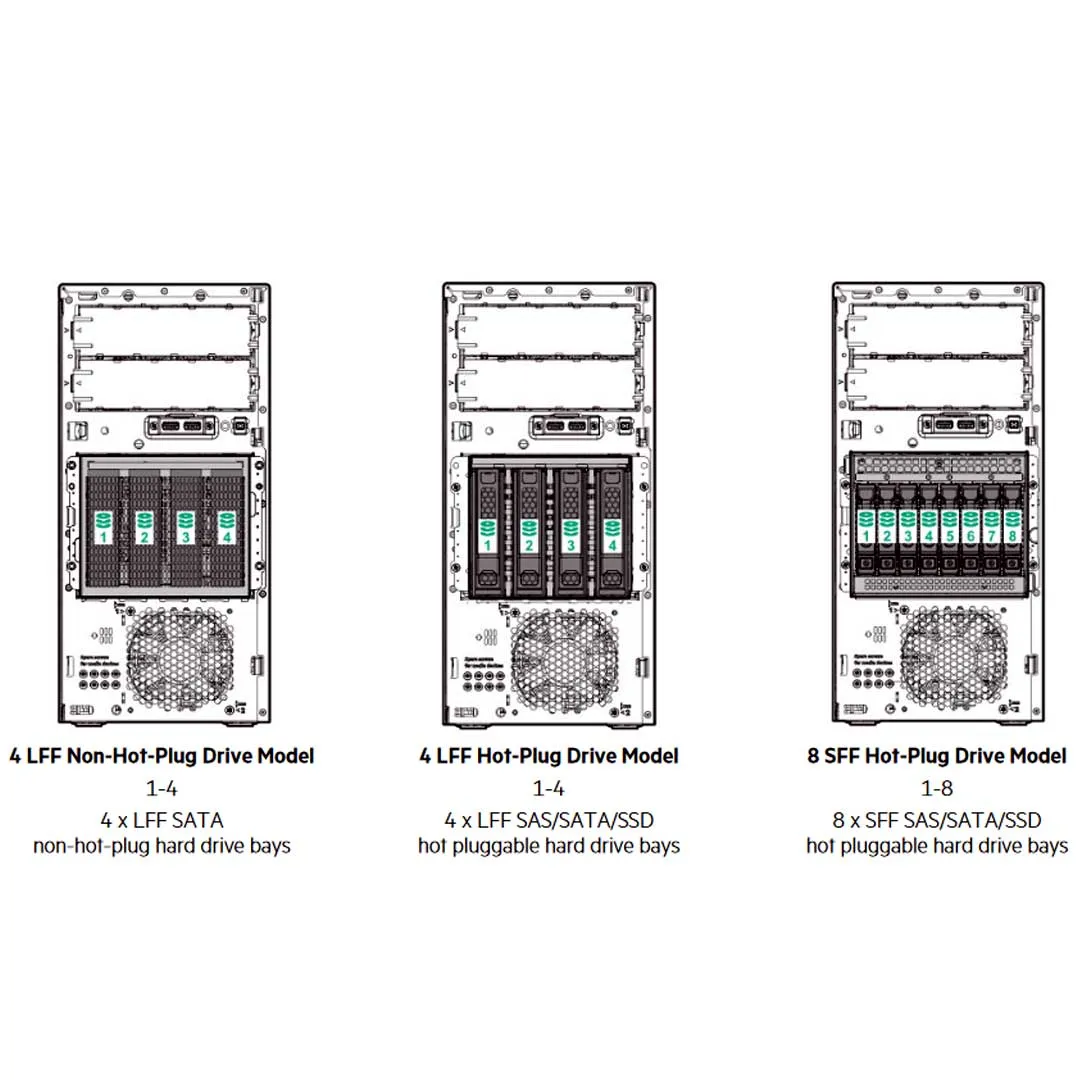

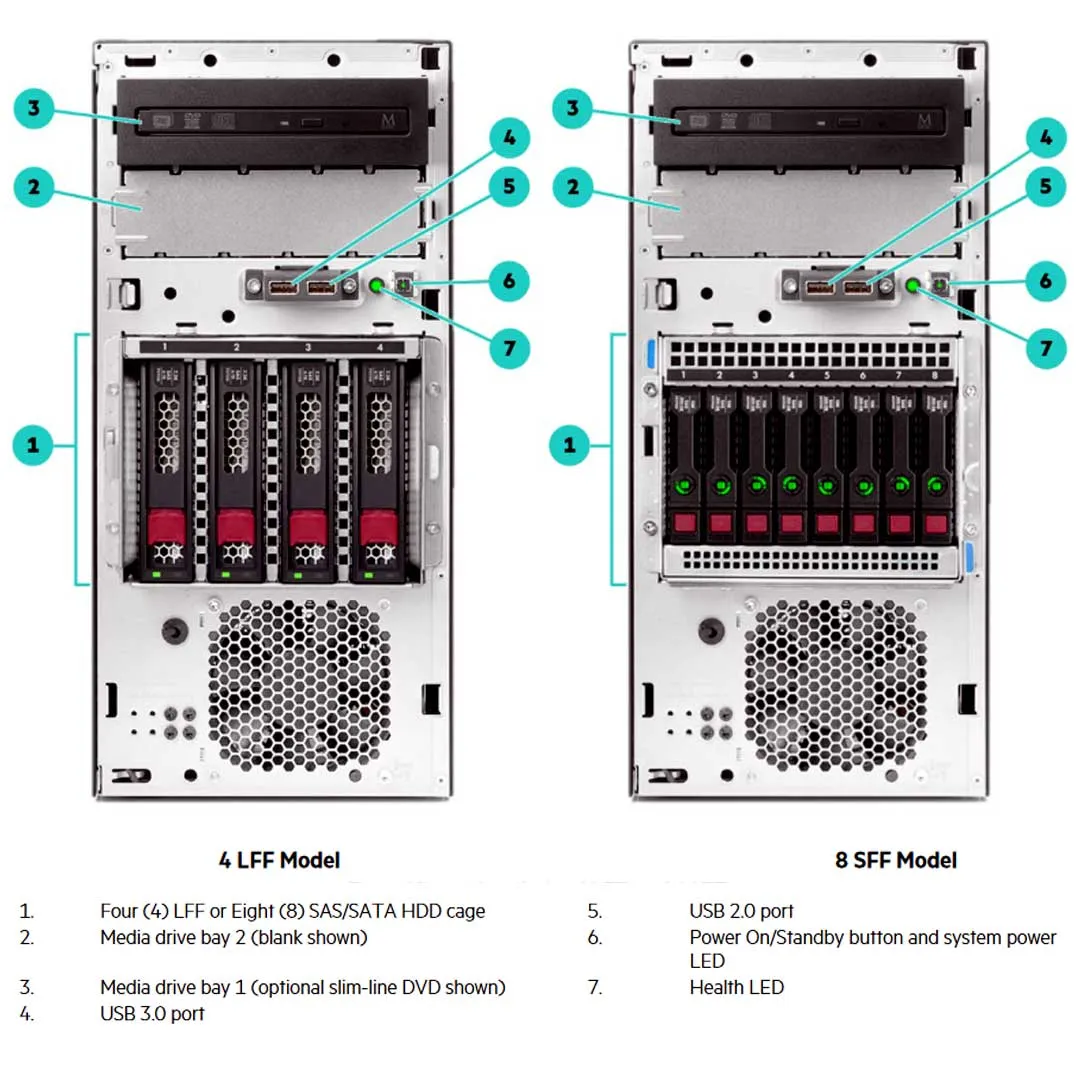

Chassis Options:

• 4 LFF Non-Hot-Plug SATA HDD (P06760-B21)

• 4 LFF Hot-Plug SAS/SATA HDD (P06761-B21)

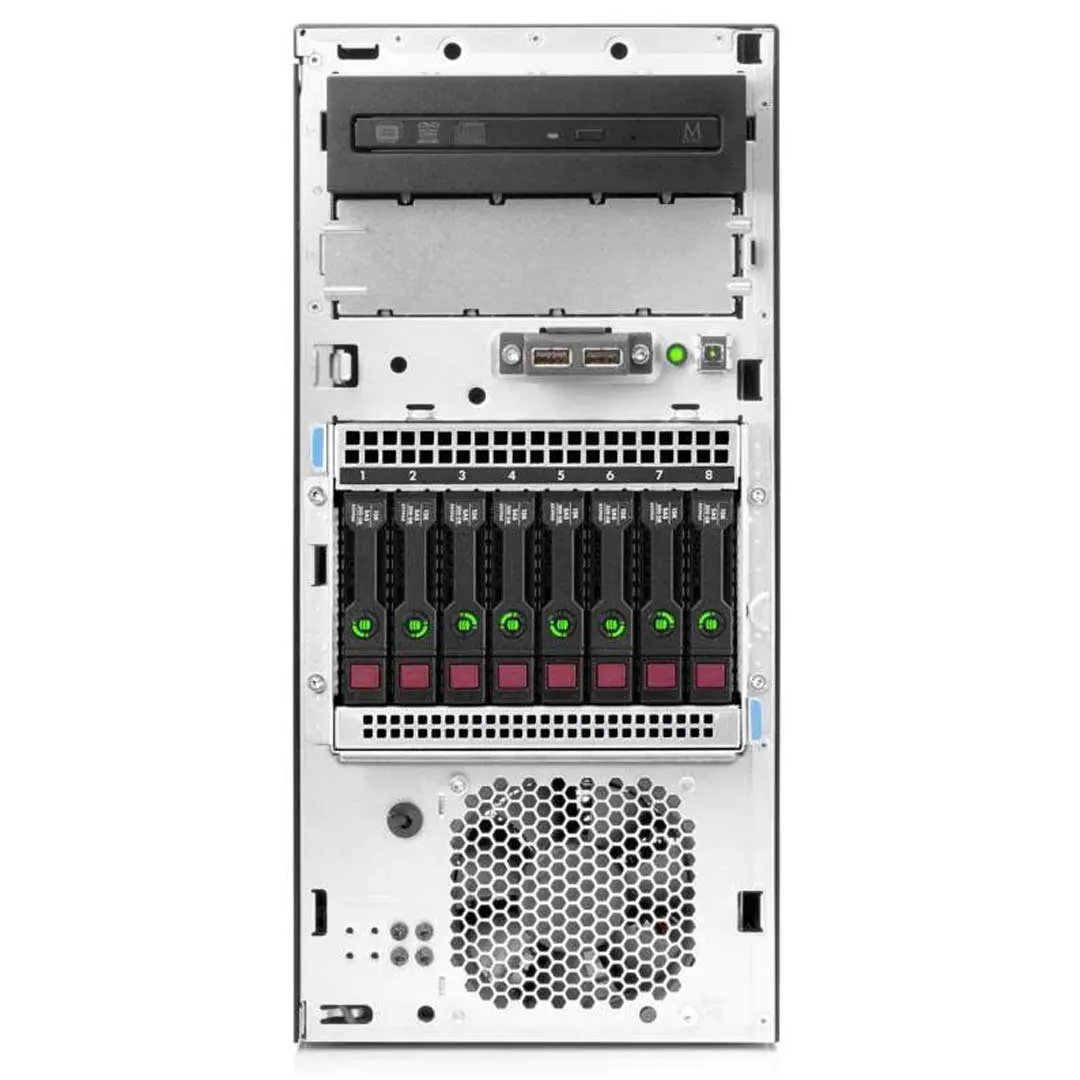

• 8 SFF Hot-Plug SAS/SATA HDD (P06762-B21)

• *** Each server has a spot for 1xM.2 NVMe SSD for boot this also supports the dedicated iLO port.

We need more Power!
Starting March 1st, 2020, only the 350W Gold-level PSU (power supply) and the 500W PSU meet the European Union (EU) Lot 9 regulation requirement for CE marking. Do not order the Bronze-level 350W PSU (820303-B21) in countries that require CE marking, especially the EU countries.

Flex Hot-Plug Power Supply Enablement Kit
To go from the 300W Non-Hot-Plug Power Supply Unit (PSU) (P21652-B21) to the Flex Slot Platinum 500W Power Supply Unit (PSU) (865408-B21). You’ll need the enablement cage (686665-001) and the Flexible Slot power supply backplane (P07479-001) . If you only install one of the Hot-Plug Redundant Power Supplies, then you’ll also need the Flexible Slot Power Supply Blank (775423-001) to keep the airflow optimal.

What Graphics Accelerators Can Be Used?
First off the GPUs can only be used when a Xeon E processor is selected. These are not allowed with the Non-Hot-Plug Chassis system.

• HPE NVIDIA Quadro P2200 75W Gen3 GPU Module (R2U55C)
• HPE NVIDIA Quadro P1000 47W Gen3 GPU Module (R3K70C)
• *** Must install the HPE 500W Flex Slot Power Supply Kit (865408-B21)
• *** Must install the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21)

How to Keep Cool?
If you install the M.2 SSD dedicated iLO module (P06687-B21), any PCI-e Cards or you select the 4 LFF Hot-Plug or the 8 SFF Hot-Plug Chassis. Then the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21) is required. Except if you choose the Non-Hot-Plug Chassis with the E208e-p controller and 1Gb network adapters.
