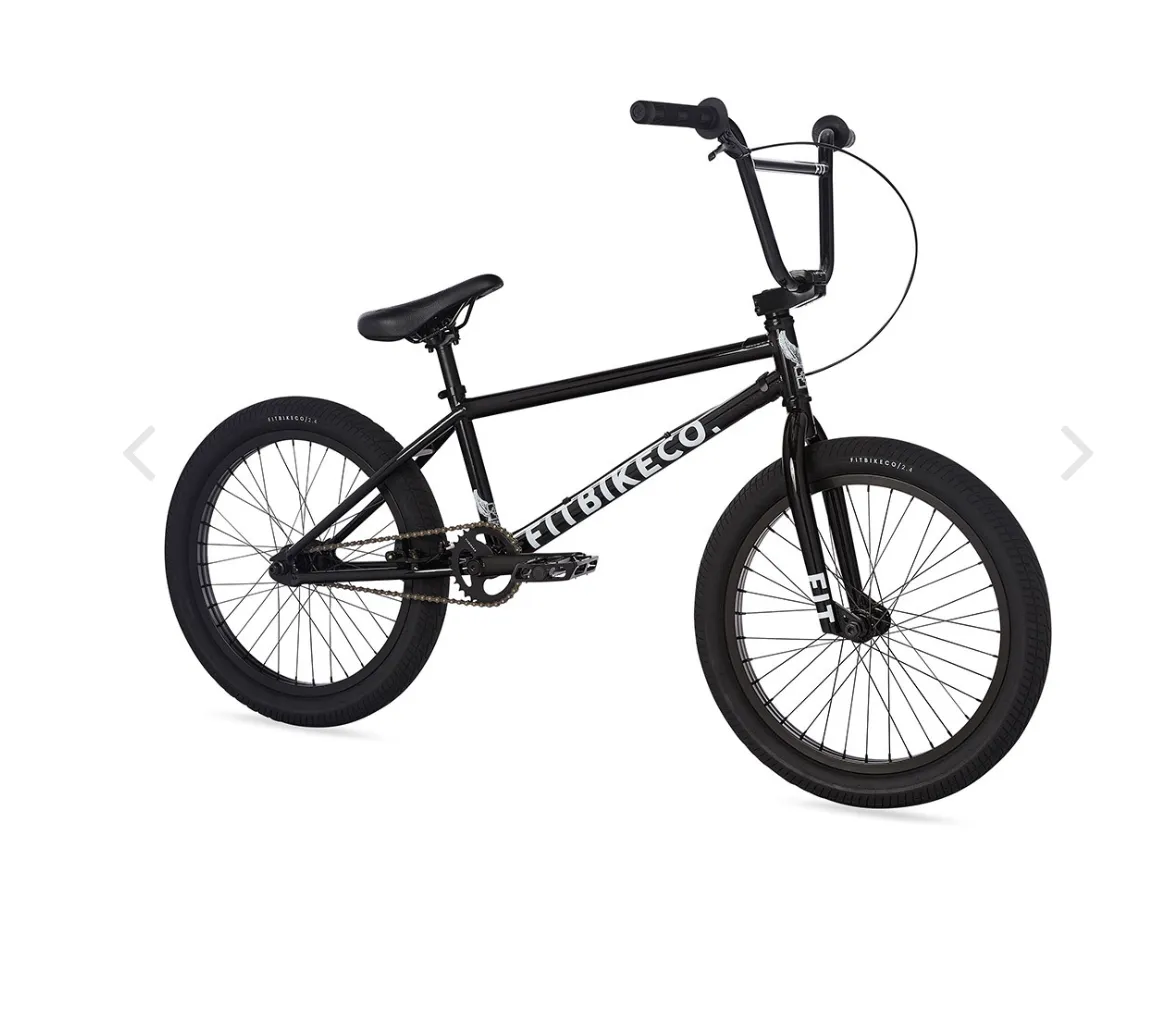

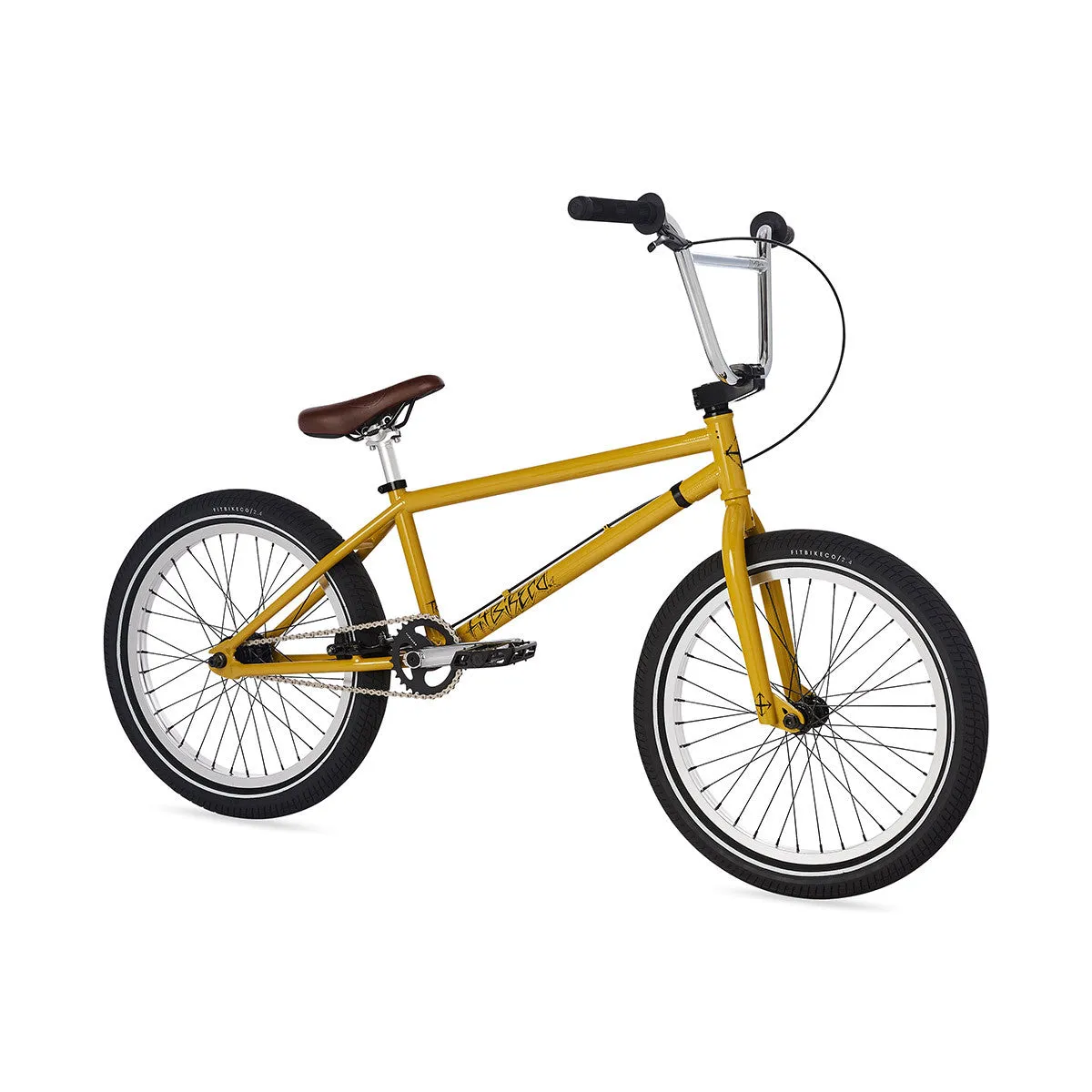

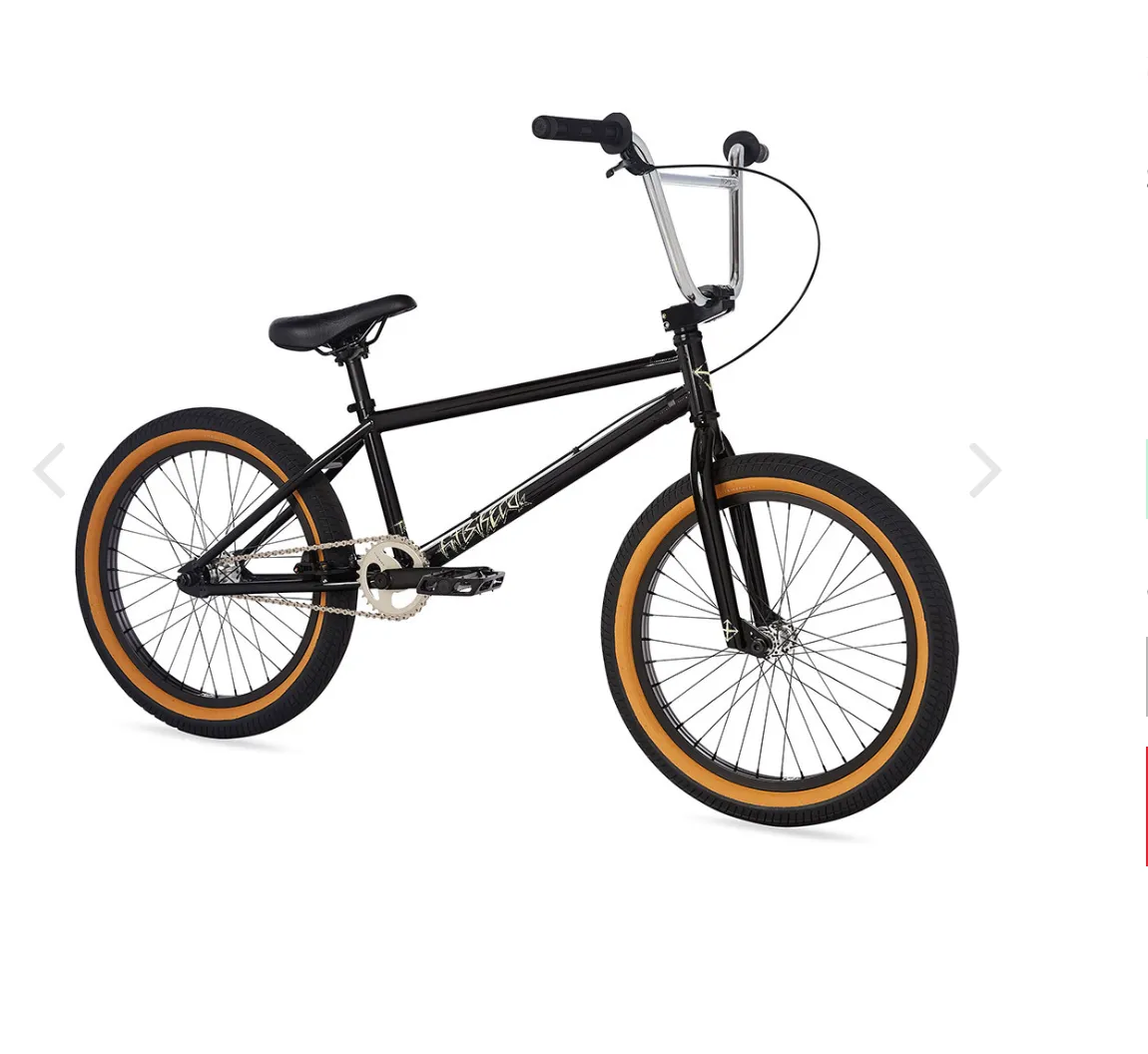

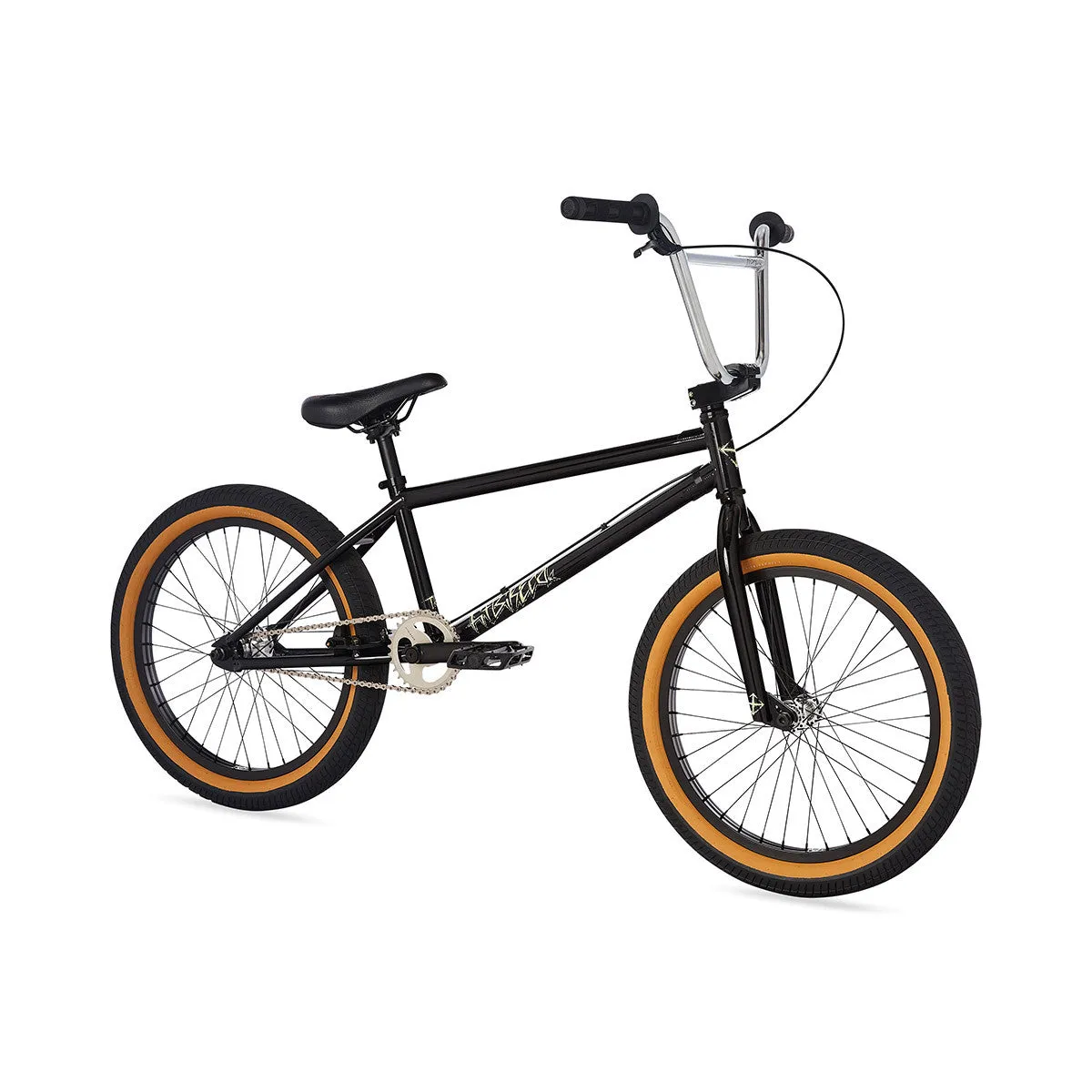

Fit TRL BMX Bike
Our TRL bikes start with longer 21” and 21.25” top-tube trail geometry frames with chain-stay mounted brakes. Traditional 33mm offset forks pair perfectly with the stable 74.5-degree TRL head-angle. We spec’d classic 29” X 9” 11 degree back and 2 degree up 2-piece bars with FIT Long Tech flanged grips on all 4 TRL models. Other notable features on the latest TRL’s include double walled FIT OEM rear rims, female front axles, S&M Shield railed seats and 300 mm micro adjust seat posts.
- Ergonomic, aftermarket FIT alloy pedals
- FITSAW 30T w/10T driver and 175mm cranks
- Chain-stay mounted U-brake
- Female front axles
FRAME: 21” TT CRO-MO FRONT TRI
GEOMETRY: TRAIL W/74.5 HA
HEADSET: INTEGRATED
BB: SEALED MID
BARS: 2-PIECE 9” X 29”
FORK: TAPERED W/33MM OFFSET
STEM: FIT TOP LOAD
GRIPS: FIT LONG TECH W/FLANGE
SEAT: S&M SHIELD RAILED
SEAT POST: 300 MM MICRO ADJUST
CRANKS: TUBULAR CRO-MO 175MM
SPROCKET: FITSAW 30T
PEDALS: FIT ALLOY
FRONT WHEEL: FIT S1W W/SEALED FEMALE AXLE
REAR WHEEL: FIT OEM DOUBLE WALL W/SEALED 10T CASSETTE
TIRES: FIT OEM 2.4”
BRAKES: NEW U-BRAKE W/MORE TIRE CLEARANCE & SOFTER PULL SPRINGS
WEIGHT: 26.9 lbs / 12.2 kg
HEADSET: INTEGRATED
BB: SEALED MID
BARS: 4-PIECE 9” X 29”
FORK: TAPERED W/25MM OFFSET
STEM: FIT TOP LOAD
GRIPS: FIT CROSSFIT
SEAT: INTEGRATED 4-PANEL SEAT/POST
CRANKS: TUBULAR CRO-MO 165MM
SPROCKET: FIT KEY 25T
PEDALS: FIT PC
FRONT WHEEL: FIT S1W W/SEALED HUB
REAR WHEEL: FIT S1W W/SEALED 9T CASSETTE
TIRES: FIT F/U 2.4”
BRAKES: NEW U-BRAKE W/MORE TIRE CLEARANCE & SOFTER PULL SPRINGS
PEGS: 4X 100MM METAL
WEIGHT: 27.7 lbs / 12.56 kg
